GOcontroll Moduline M1
The Moduline M1 is our compact entry level modular programmable controller offering up to 4 IO modules and various communication interfaces. The controller is powered by a powerful application processor from NXP, offering high performance processing and a broad spectrum of peripheral interfaces. The robust enclosure offers IP67 protection and is equipped with a pressure equilibrium/vent plug to reduce the risk of condensation buildup from moisture in the air. It also protects the electronics inside from impacts and other influences the harsh environment of automotive applications may provide. The enclosure is CNC milled from billet EN-AW5083 Aluminum and anodized grey.
The Moduline family runs on Linux which allows various software options such as MATLAB/Simulink and Node-RED. These software tools utilize visual programming which significantly speeds up algorithm development.
The flexible hardware design of the Moduline family allows for complex and/or unusual controller configurations. The hardware itself is designed to withstand the harsch conditions of automotive applications and has been tested according to ECE-R10 by Kiwa Dare.
If you have a GOcontroll Moduline M1 controller, the knowledge base will help to setup the controller.
Onboard features
The GOcontroll Moduline M1 controller is standard equipped with some features which can be used in applications without the need of extra modules plugged into the controller.
| Feature | Specification |
|---|---|
| 4 Module slots | For Moduline compatible modules |
| 4 Built in programmable LEDs | High brightness multicolor RGB |
| USB | 2.0 |
| Ethernet | 10/100 Mbps |
| 2 x CAN | CAN 2.0 B |
| Bluetooth* | 5.1 BR/EDR/LE, 3MPHY |
| Wi-Fi* | Wi-Fi 4, 802.11 b/g/n |
| Cellular communication* | LTE CAT-4 (LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE) |
| Positioning GNSS* | GPS/GLONASS/BeiDou/Galileo |
| Serial communication | RS232 (assembly option) |
| Accelerometer | 3-axis (2 g, 4 g, 8 g, 16 g) |
Processor specifications
The GOcontroll Moduline M1 controller is equipped with an i.MX8 application processor which is only used for the application. Low level signal processing is handled locally by the modules.
| Moduline M1 | Quad Core |
|---|---|
| Processor | i.MX8M Mini |
| Architecture | Quad ARM® Cortex® A53 |
| Flash memory | 4 GB eMMC |
| RAM memory | 1 GB |
| Core speed (for each core available) | 1.6 GHz |
| Boot time for running compiled Simulink models | 2.4 to 2.6 seconds |
| Boot time for running Node-RED service | 8 to 10 seconds |
Controller connections
The Moduline M1 controller is equipped with two automotive IO connectors, two M12 connectors and three SMA connectors. The two automotive IO connectors provide not only up to 40 IO’s, but also 2 CAN bus interfaces, the power supply, a reset input and three enable inputs. These enable inputs will boot the controller when they are high. If a low activate input is detected in software, user can finish some routines/controls before shutting down the controller. The enable pins are only for activation of the controller. The supply for the controller comes from the K30 connection.
| Connector B |
|---|
 |
| 6437288-2 |
 |
| 4-1437290-1 |
The B connector is the most important connector on a Moduline M1. It houses the power supply for the controller and also provides one of the two CAN bus interfaces. Furthermore the B connector houses the controller reset and one enable input. Alongside these controller specific connections, there are 26 pins which are directly connected to two of the four module slots inside. These pin definitions can be found on the product pages of the desired module.
| Pin | Funtion | Description |
|---|---|---|
| 8 – 9 | K30 (supply) | Battery positive connection |
| 17 | K15 (contact) | Switch on controller 1 (active high) |
| 16 | Controller Reset | Reset controller (active high) |
| 24 | CAN 1 Low | CAN low line |
| 25 | CAN 1 High | CAN high line |
| 33 – 34 | K31 (ground) | Battery negative connection |
| Connector A |
|---|
 |
| 6437288-1 |
|
| 4-1437290-0 |
The A connector is mainly used for IO on a Moduline M1. It does however provide the second CAN bus interface and two more enable inputs. Alongside these controller specific connections, there are 26 pins which are directly connected to two of the four module slots inside. These pin definitions can be found on the product pages of the desired module.
| Pin | Funtion | Description |
|---|---|---|
| 8-9 | N/C | Pins are not connected |
| 16 | K15 (contact) | Switch on controller 2 (active high) |
| 17 | K15 (contact) | Switch on controller 3 (active high) |
| 24 | CAN 2 Low | CAN low line |
| 25 | CAN 2 High | CAN high line |
| 33-34 | N/C | Pins are not connected |
Controller supply and maximum ratings
The controller is supplied by the B connector. This supply is only used to power up the controller. Output modules are supplied separate from the controller. This means that each output module can drive a maximum of 15 Ampère and (when preferred) have a different working voltage than the controller itself. Check the datasheet from the Output Module for more information.
| Parameter | Specification |
|---|---|
| Supply voltage (K30) | 8 – 32 VDC |
| Contact voltage (K15) (all K15 pins) | 8 – 32 VDC |
| Nominal current consumption when controller is active (no modules installed) | 310 mA @ 12 VDC – 200 mA @ 24 VDC |
| Current consumption when switched off (K15’s low) | < 1 mA |
| Load dump protection | Designed according ISO7637-2 5a/5b |
General controller specifications
| Item | Weight |
|---|---|
| GOcontroll Moduline M1 controller (without modules) | 651 gram |
| Each extra input module | 13 gram |
| Each extra output module | 29 gram |
| Item | Details |
|---|---|
| Enclosure material | CNC machined billet Aluminium EN AW-5083, anodised grey |
| Seal material | Closed cell sponge Neoprene gasket |
| Enclosure breather | Polyether sulphone (PES) membrane |
| Temperature range | -20° C to 85° C |
| Enclosure label size | 25 x 54 mm |
| Mating connector A | Tyco 4-1437290-0 |
| Mating connector B | Tyco 4-1437290-1 |
| Connector terminals | Tyco 3-1447221-3 |

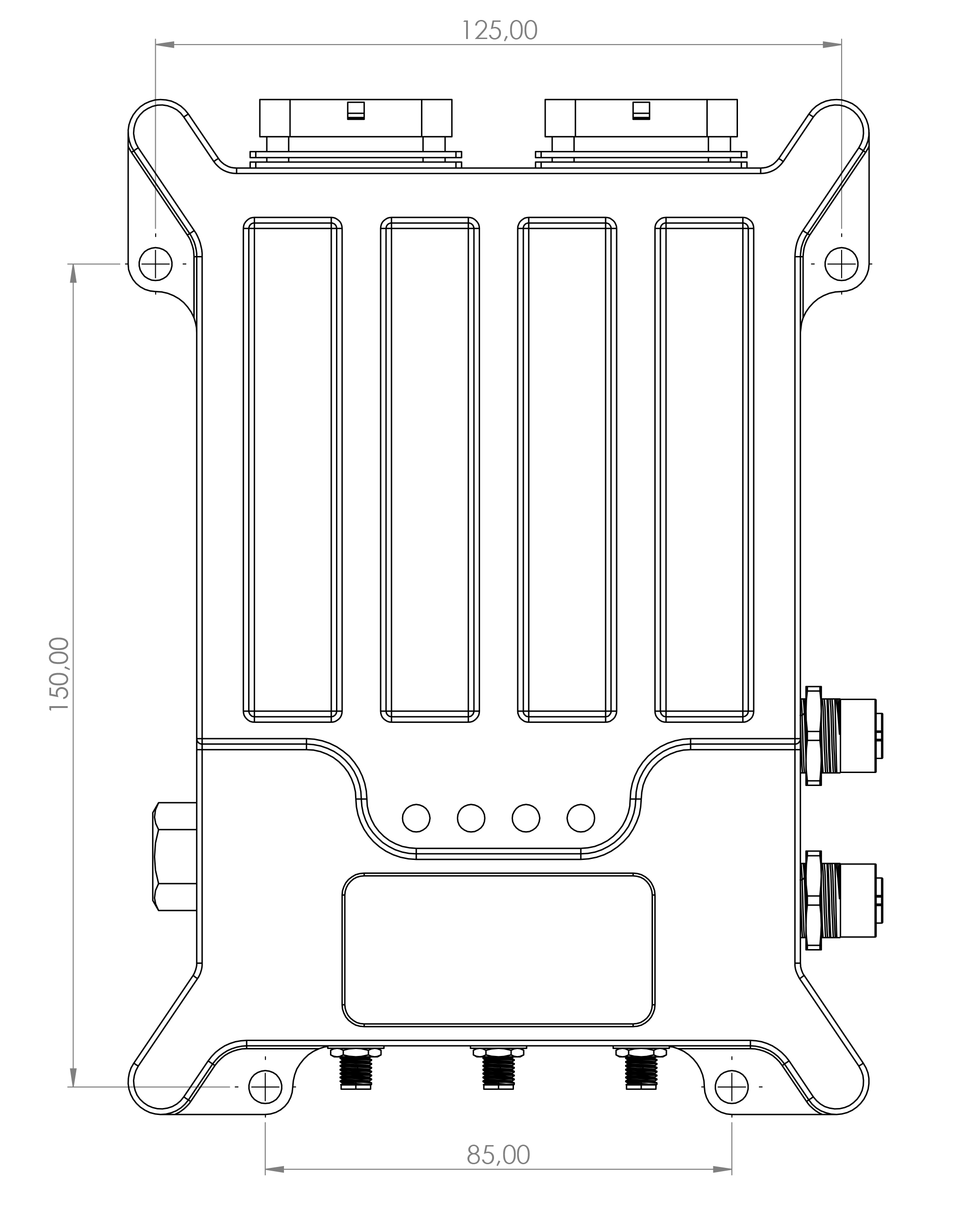

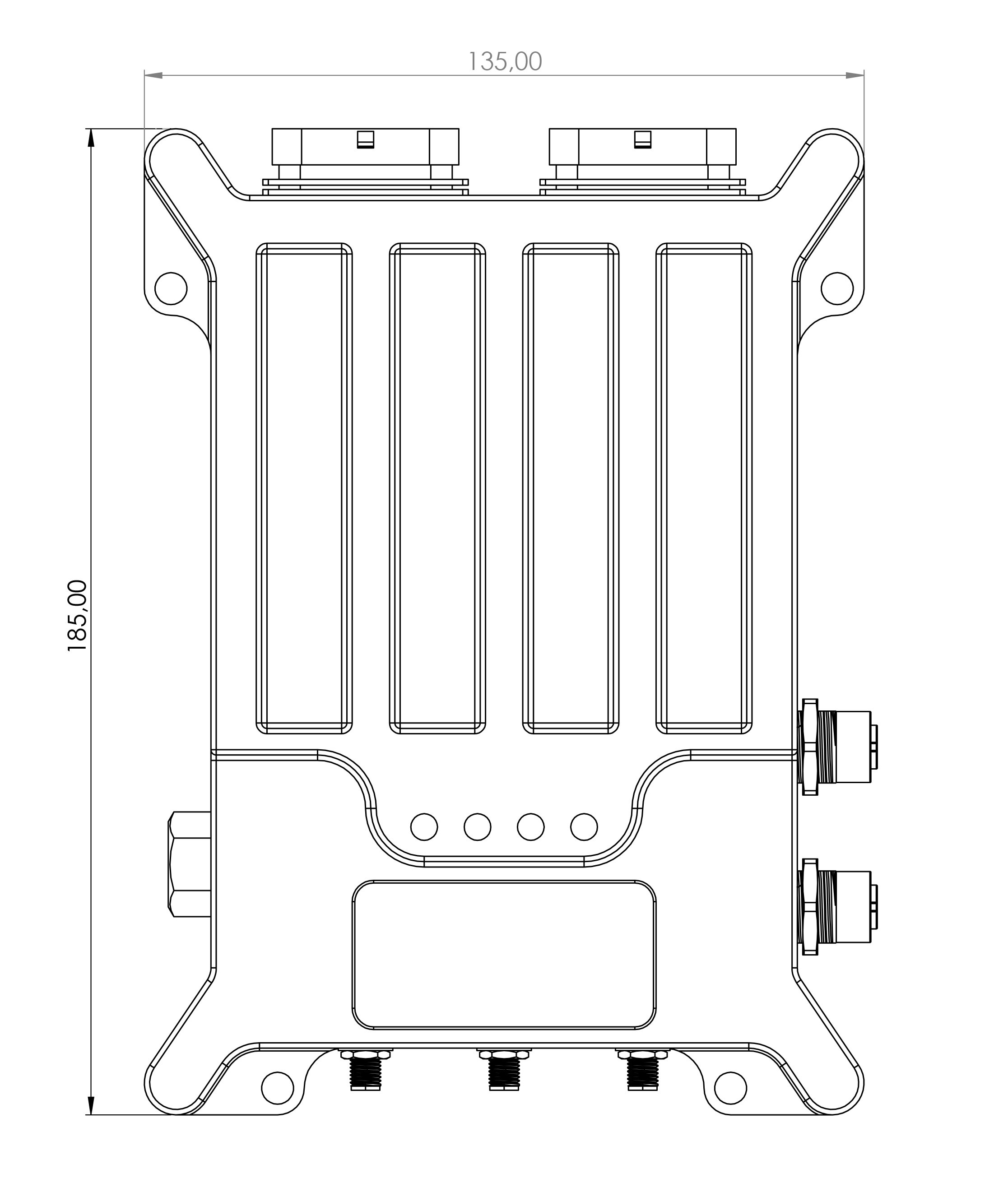

Controller dimensions
Please let us know if you consider to implement a GOcontroll controller into your system. We can provide a step file for more detailed dimensions.
